Drawing from the Past: Working with Medieval Manuals of Geometry This ONLINE presentation will be taught by Katya Nosyreva PhD and facilitated by Adam Williamson.
Historical references on the construction of Islamic geometric patterns are rare, but what we do have offers fascinating glimpses of practical methods, thought processes, and the world-view of medieval Islamic craftsmen.
In this special two-part introduction we will explore two rare and remarkable documents dealing with geometric modes of construction:
A Book on Those Geometric Constructions Which Are Necessary for a Craftsman, written by the tenth century mathematician and astronomer Abū al-Wafā’ Būzjānī (940-998) and an anonymous Persian compendium entitled On Similar and Complementary Interlocking Figures, a practical manual on geometry, appended to a Persian translation of al-Būzjānī’s text.
We will work through a series of constructions from these documents. Evolving from theoretical principles of Euclidean geometry, some of the diagrams can be traced to architectural scrolls and ornamental architectural solutions. These exercises will provide us with some understanding of the early roots of the incredibly complex vocabulary of the Islamic geometric patterns and their relationship to such disciplines as surveying and arithmetic.
We will explore how questions of practical/applied geometry were discussed by mathematicians and practitioners of various crafts, and how the practice of drawing geometric designs constituted a tradition of recoding and transmitting architectural knowledge. The diagrams in these documents visually evoke concepts of beauty and order rooted in the harmony of proportionally interrelated figures and, in part, explain the timeless fascination that geometry holds for contemporary artists and practitioners.
Drawing from the Past: Working with Medieval Manuals of Geometry PART 1
Sunday 10th of January 2021
Time zone in United Kingdom (GMT)

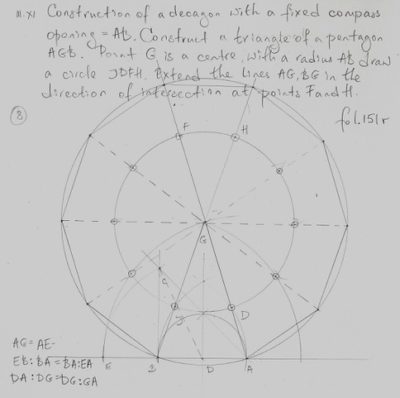

Kitāb fī mā yaḥtaj ilayh al-ṣāniʿ min al-aʿmāl al-handasiyya (A Book on Those Geometric Constructions Which Are Necessary for a Craftsman), Abū al-Wafā’ Būzjānī. There are several translations of this work, we are going to look at MS Persan 169, sec. 23, fols. 141v – 179v, Bibliotheque Nationale, Paris.
Drawing from the Past: Working with Medieval Manuals of Geometry PART 2
Sunday 17th of January 2021
Time zone in United Kingdom (GMT)
Fī tadākhul al-ashkāl al-mutashābiha aw al-mutawāfiqa (On Similar and Complementary Interlocking Figures) or the Anonymous Compendium, appended to the Persian translation of al-Būzjānī’s text in the Paris codex. MS Persan 169,
Please wait after making the donation to be redirected to the registration page. We will also send everyone an email before the class with material to familiarise yourself before the session along with the online passcode again which will give you access to the class on Saturday.
If your country doesn’t support PayPal or you have any issues please Email:
The course will require you to download the free app Zoom
REQUIRED equipment & materials
- A compass (recommended compass is the Rotring Master Bow)
- A ruler
- Paper size A3 = 29.7 x 42.0cm, 11.69 x 16.53 inches
- Range of Pencils (6B-4H)
- Tracing paper
- Zero Eraser or equivalent
- Optional – Coloured pencils.
- Optional – Fine line drawing pens (useful to have, but not essential)
